Volumetric route (BEM / FreeSurfer): the complete pipeline

The alternative to the cortical route: FreeSurfer (via WSL) → three-layer BEM → volumetric source space → a source estimate throughout the brain volume. Same inputs, a different head model.

Cortical or volumetric?

The cortical route (SimNIBS FEM, Windows-native) constrains sources to the cortical surface. The volumetric route fills the whole brain volume with a regular grid — useful for deep or subcortical sources — at the cost of FreeSurfer under WSL and a three-layer BEM model.

The single call

A separate function, reconstruct_sources_volumetric, with the arguments specific to FreeSurfer and the BEM.

from mri2mne.wrapper import reconstruct_sources_volumetric

result = reconstruct_sources_volumetric(
    subject="sampleW",
    output_dir="D:/derivatives",
    dicom_dir="D:/dicom/sample",          # or t1_path=...
    eeg_file="D:/eeg/sample.edf",
    digitization="D:/dig/sample.elc",
    wsl_distro="Ubuntu",                  # WSL distro with FreeSurfer
    freesurfer_home="/usr/local/freesurfer",
    pos_mm=5.0,                           # grid spacing (mm)
    conductivity=(0.3, 0.006, 0.3),       # brain, skull, scalp
    events="find", event_id={"aud_l": 1},
    inverse_method="dSPM", snr=3.0,
    loose=1.0,                            # free orientation (volume)
)
print(result.source_estimate_file, result.peak)  # ...-vl.stc

Step 1 — Anatomy (DICOM → T1)

Identical to the cortical route: the DICOM is anonymised then converted to a T1 NIfTI.

The subject's T1, sagittal, coronal and axial slices.
The subject's T1, sagittal, coronal and axial slices.

Step 2 — FreeSurfer + three-layer BEM (WSL)

Under WSL, recon-all -autorecon1 then the watershed algorithm extract three boundary surfaces — inner skull, outer skull, skin — that MNE turns into a BEM model. Watershed is subject-dependent: on a noisy clinical T1 the surfaces can self-intersect, hence the bem_strict option.

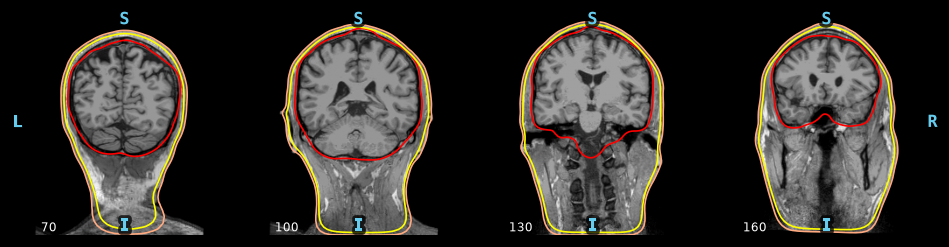

The three BEM surfaces (inner skull in red, outer skull and skin in yellow) over coronal T1 slices.
The three BEM surfaces (inner skull in red, outer skull and skin in yellow) over coronal T1 slices.

Step 3 — The volumetric source space

Instead of points on the cortex, a regular grid fills the volume bounded by the inner skull. The spacing is set by pos_mm (5 mm here).

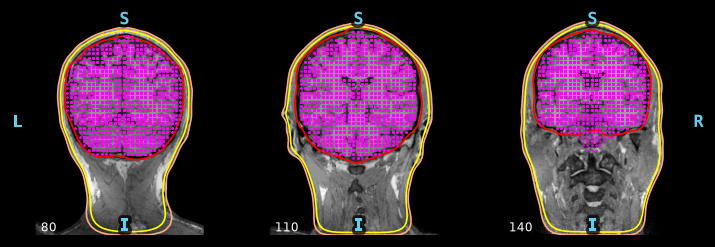

Source grid (magenta) filling the brain volume.
Source grid (magenta) filling the brain volume.

Step 4 — Coregistration

Same principle as the cortical route, but in FreeSurfer's MRI frame: the electrodes are aligned to the watershed skin surface.

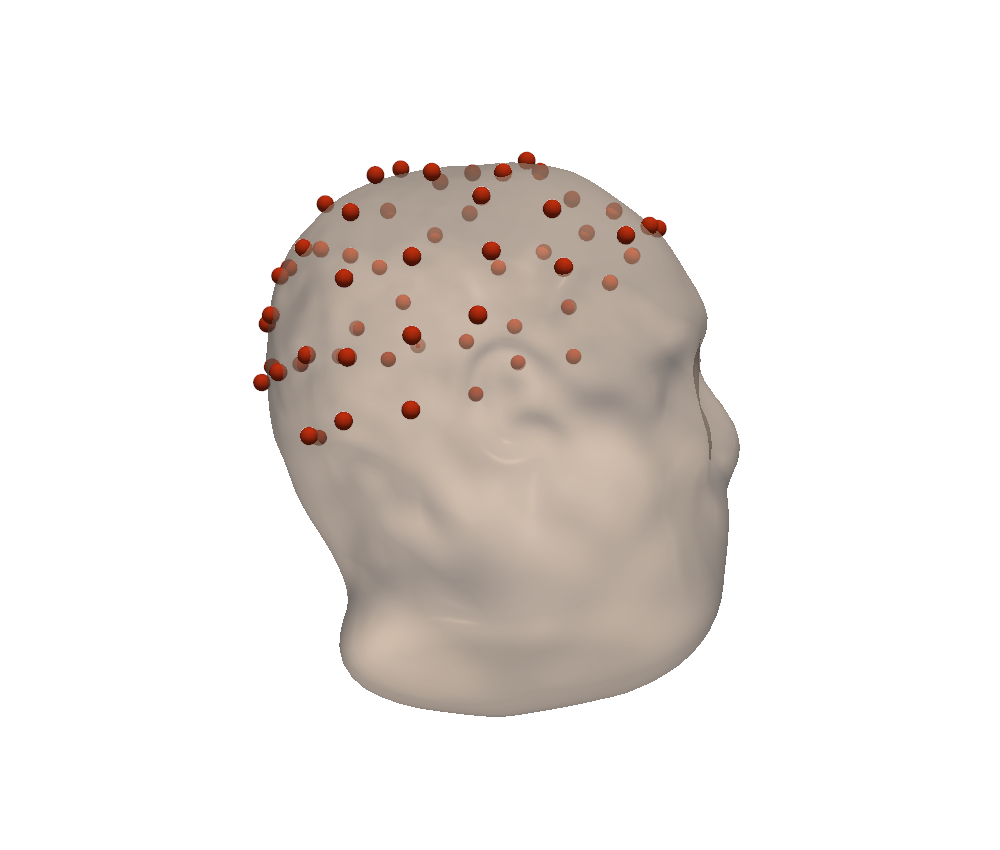

Electrodes (red) on the FreeSurfer skin surface after coregistration.
Electrodes (red) on the FreeSurfer skin surface after coregistration.

Step 5 — BEM forward, inverse and sources

The three-layer BEM gives the forward model on the volume grid; the inverse uses free orientation (loose=1.0, suited to a volume). The estimate is saved as -vl.stc and is visualised on the T1.

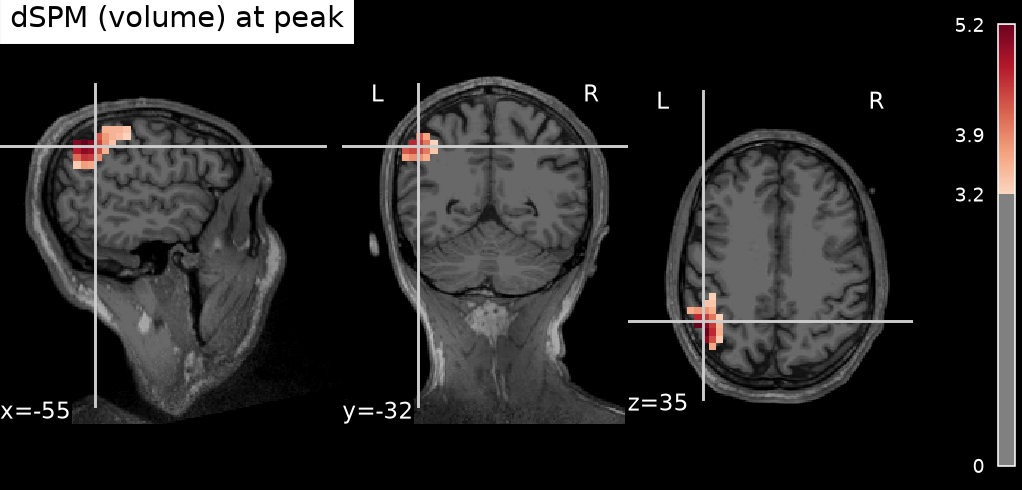

Volumetric dSPM estimate at the peak, overlaid on the T1 (orthogonal view, crosshair on the maximum).
Volumetric dSPM estimate at the peak, overlaid on the T1 (orthogonal view, crosshair on the maximum).

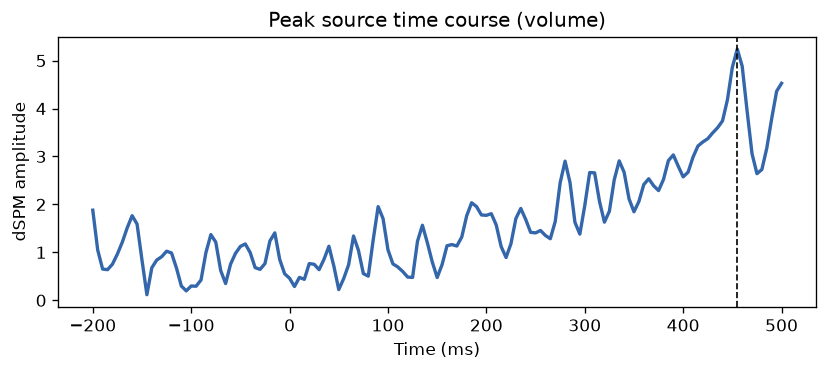

Time course of the strongest volume source.
Time course of the strongest volume source.
